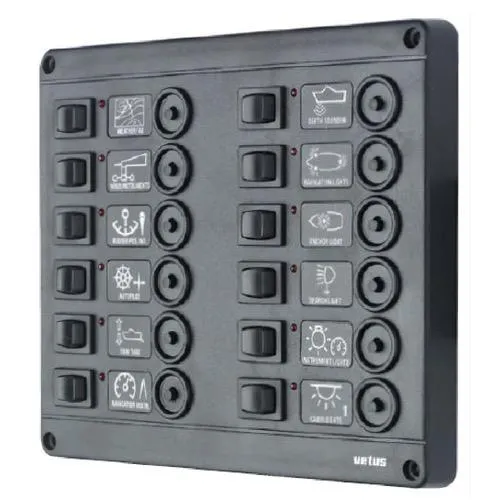

This panel features 12 on/off switches, 12 monitoring L.E.D.’s and a choice of either 12 automatic fuses or 12 tubular glass fuses of 10 A.

Specifications

• Dimensions 188 x 156mm
• Built-in depth 50mm

  Available for 12 or 24 Volt D.C. circuits.
  Sixty self-adhesive name/symbol plates for different functions are supplied.

  VETUS switch panels are supplied pre-wired. The only work required is to connect the positive and negative feeds of the various services (lights, pumps etc.). These panels are made of synthetic and non-corrosive materials, but are not waterproof.
