| Product Attribute | Attribute Value |
|---|---|
| Approvals | 20G, RoHS Compliant, SAE J1378 |
| Battery Life | 8 Years |
| Depth | 0.079" (2mm) |
| Dimensions, Cutout, Inches | 37.1 x 24.1 mm |
| Display Digit Height | 5 mm |
| Display Type | Digital, LCD |
| Function | Hour Meter |
| Input Type | Voltage |
| Measurement Range | 0 to 99999.9 hr. |
| Measuring Range | 0 to 99999.9 hrs. |
| Minimum Operating Temperature | -25 °C |
| Mounting Type | Panel |
| Number of Digits | 6 Digits |
| Operating Temperature | -25 to 70 C |
| Series | |
| Temperature Range | -25 to 70 °C |
| Temperature, Opening, Maximum | 70 °C |
| Type | Electronic |

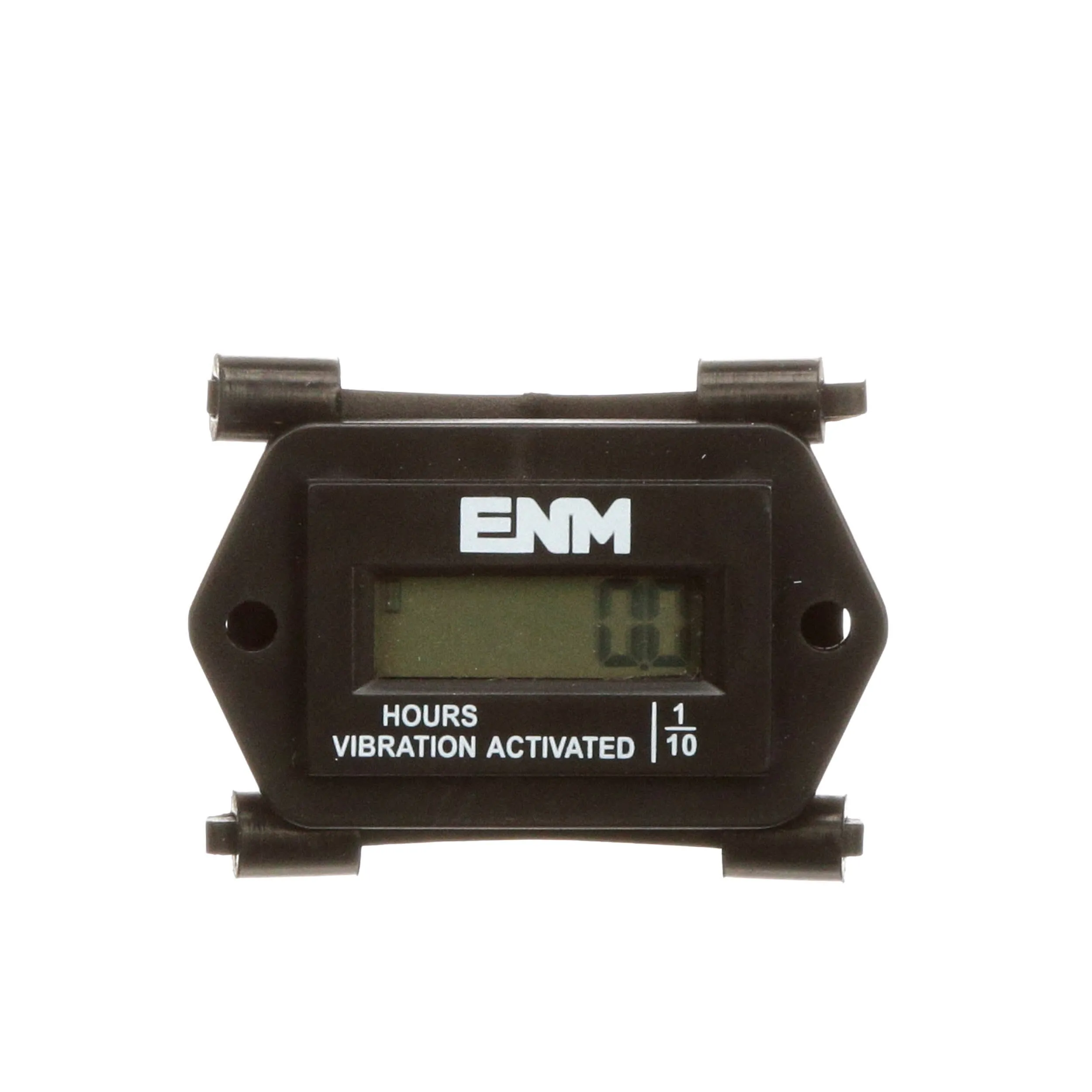

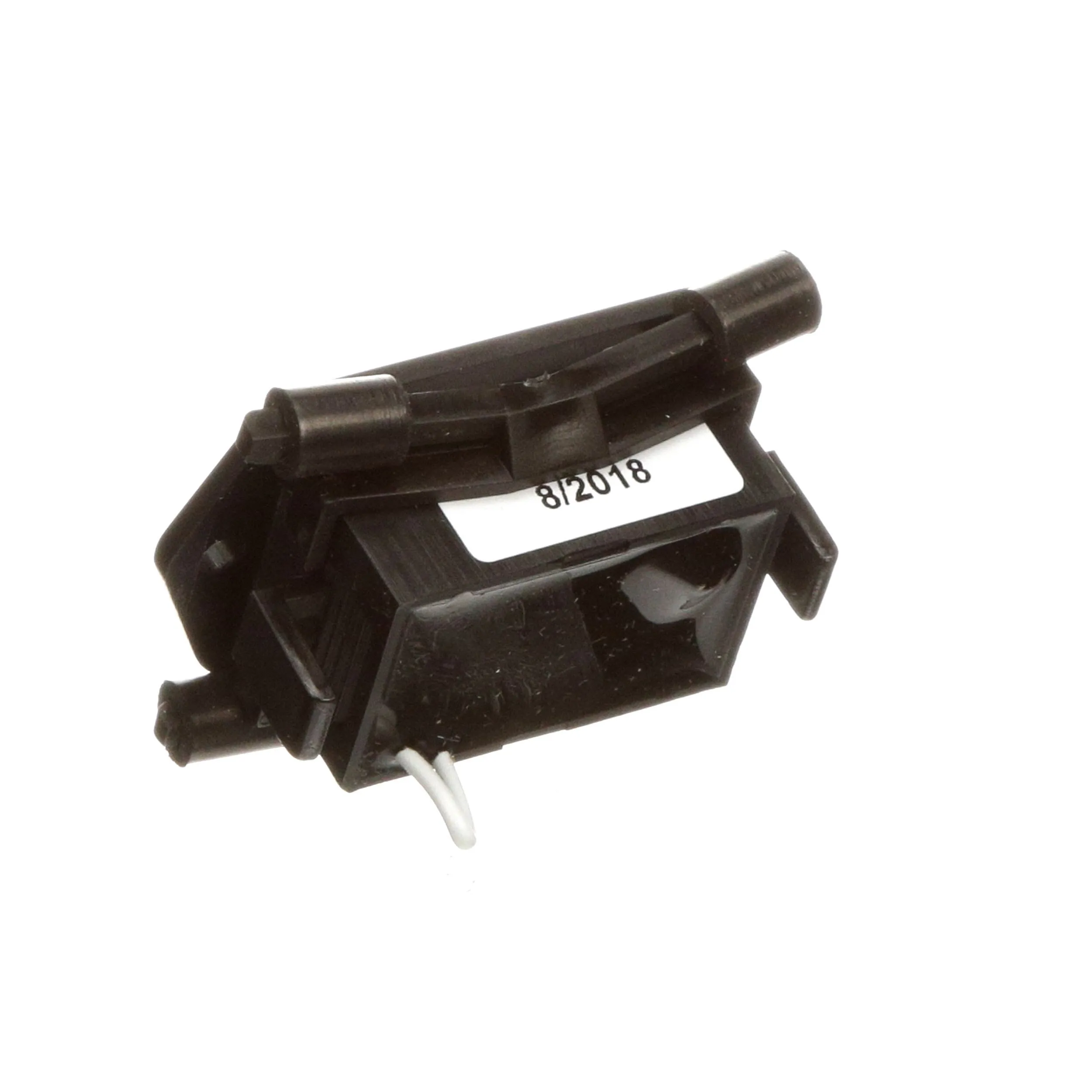

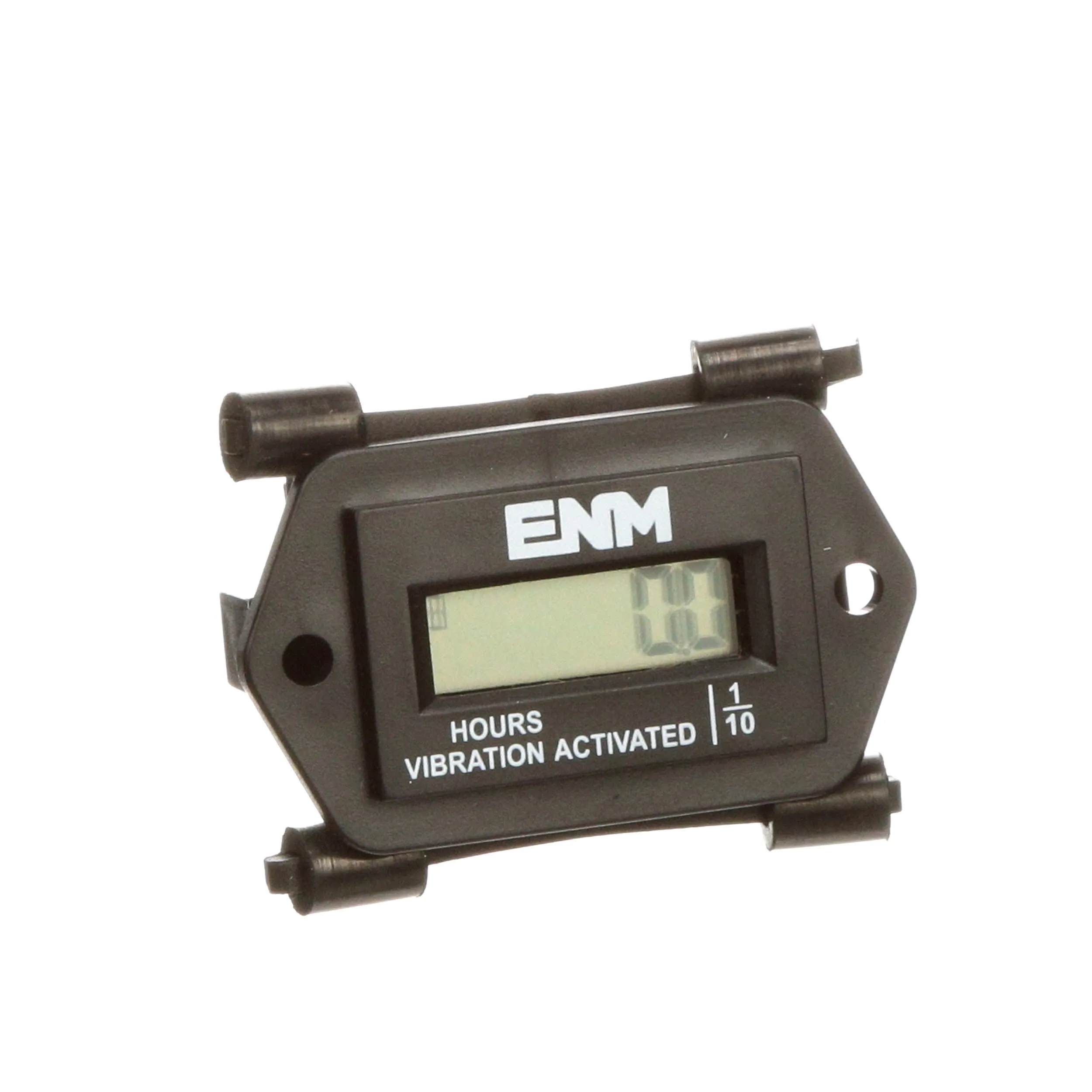

Overview
The T56 hour meter features 6-digits with an hour glass icon as a running indicator. This unit operates only when it is introduced to vibrating equipment. This meter can be installed anywhere on equipment with no special wiring connection or power source to operate. The internal battery supplies all the necessary power for the gauge to operate for years of service. The total operating hours are always shown on the LCD display. This compact tamper proof meter is 100% encapsulated with potting compound enabling it to operate in even the most extreme conditions.
