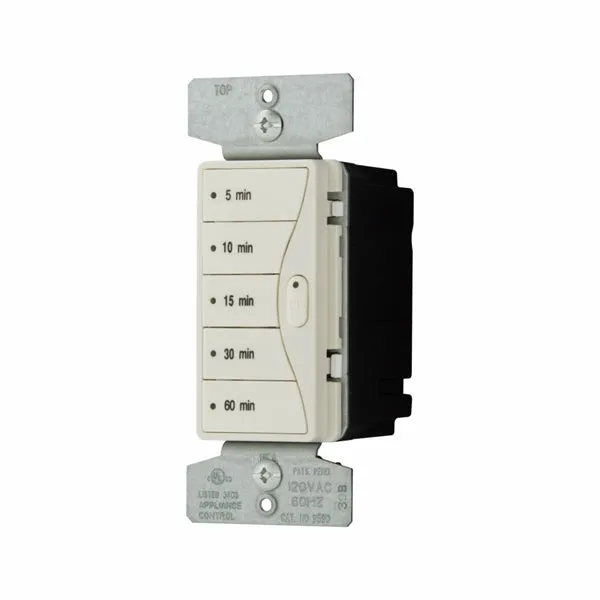

Aspire timers are programmable hr or min time delay in 2 modes for preset groups or down to 1 min increments. Aspire timers match the aesthetics of all aspire RF and aspire collection devices and are available in all aspire designer colors. Rated for up to 1800 W loads AC at 120 V and operates incandescent/halogen, magnetic low-voltage, electronic low-voltage, fluorescent, compact fluorescent and LED lighting load types. Ideal for both new construction and retrofit with no neutral required for installation.
Product Details
Manufacturer:
Manufacturer's Part Number: 9590SG
Show me more
Product Features
- Horsepower-rated for 1/4 hp motor loads
- LED indication of time interval selected and countdown
- Ideal for both new construction and retrofit with no neutral required for installation
- Five preset time intervals, easily programmable to alternate time intervals to suit your needs
- Timers offer energy savings in areas where lights or fans are often left on like bathrooms, garages, closets and laundry rooms
Product Specifications
| Color | Silver Granite |
| Current Rating | 15 A |
| Depth | 1.8 in |
| Frequency Rating | 60 Hz |
| Height | 3.81 in |
| HP Rating | 1/4 hp |
| Installation Type | Box, Wall |
| Material | Polycarbonate |
| Number of Poles | 1 |
| Suitable for | Compact Fluorescent, Electronic Low-Voltage, Fluorescent, Incandescent/ Halogen, Led and Magnetic Low-Voltage Lights |
| Temperature Rating | 40 deg C |
| Time Setting | 5, 10, 15, 30, 60 min Off |
| Type | Programmable |
| Voltage Rating | 120 V |
| Wattage Rating | 1800 W |
| Width | 1.39 in |
