| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±.15 Sec. |
| Contact Current Rating | 10 A |
| Cut Out, Panel | 3.187 in., 80.95 mm Dia. |
| Depth | 0.236" (6mm) |
| Dimensions | 96.82 x 107.95 x 146.05 mm |
| Display Type | Analog |
| Function | Hour, Elasped Time |
| Input Signal Type | Power to Contacts |
| Length | 3.811" (96.82mm) |
| Maximum Operating Temperature | 60 °C |
| Measurement Range | 0 to 30 sec. |
| Minimum Operating Temperature | -18 °C |
| Mounting Style | Panel Mount |
| Primary Type | Reset Timer |
| Series | |
| Supply Voltage | 120 VAC |
| Temperature Operating Range | -18 to 60 °C |
| Terminal Type | Screw |
| Termination | Screw |
| Type | Electric Reset Timer |
| Width | 4.25" (107.95mm) |
Overview

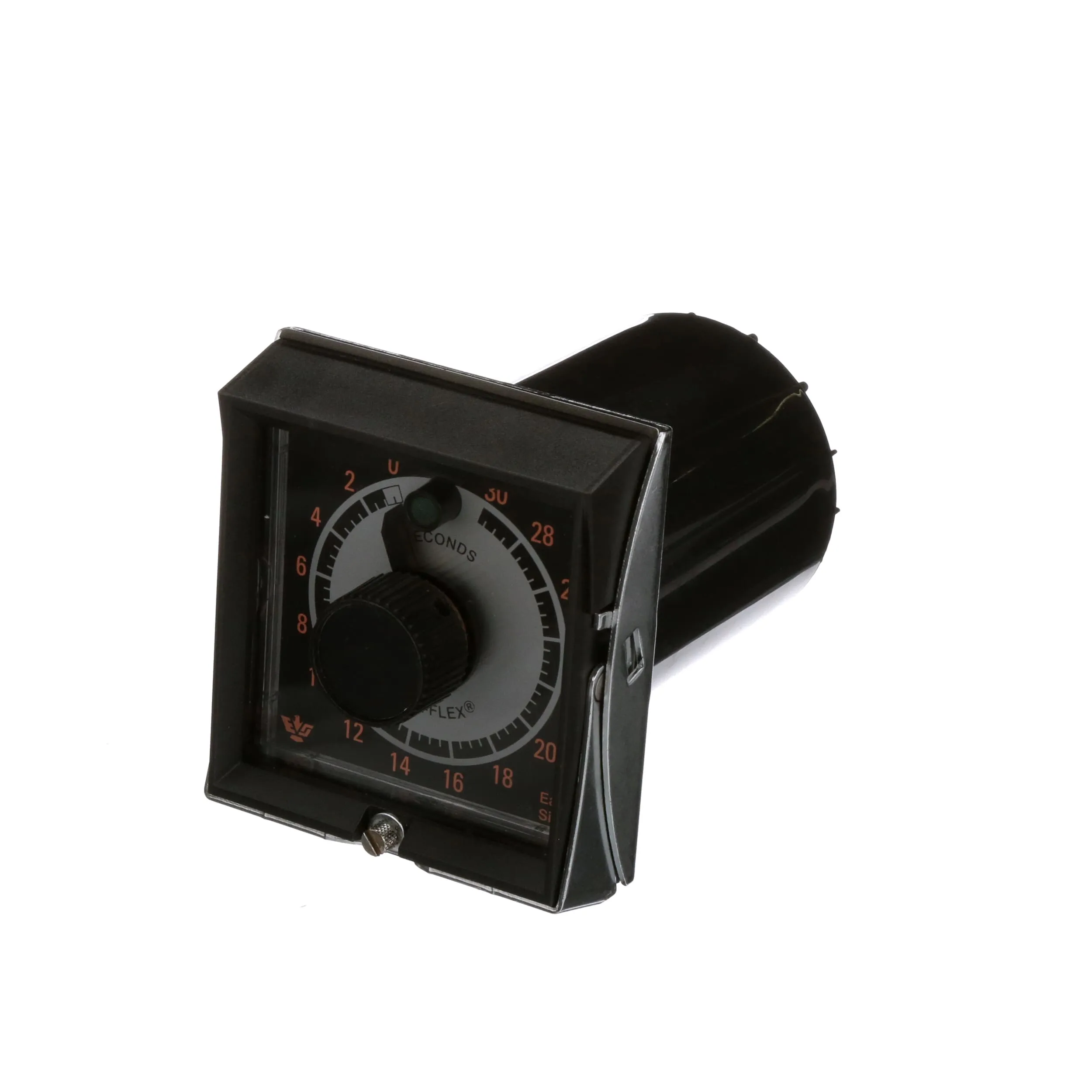

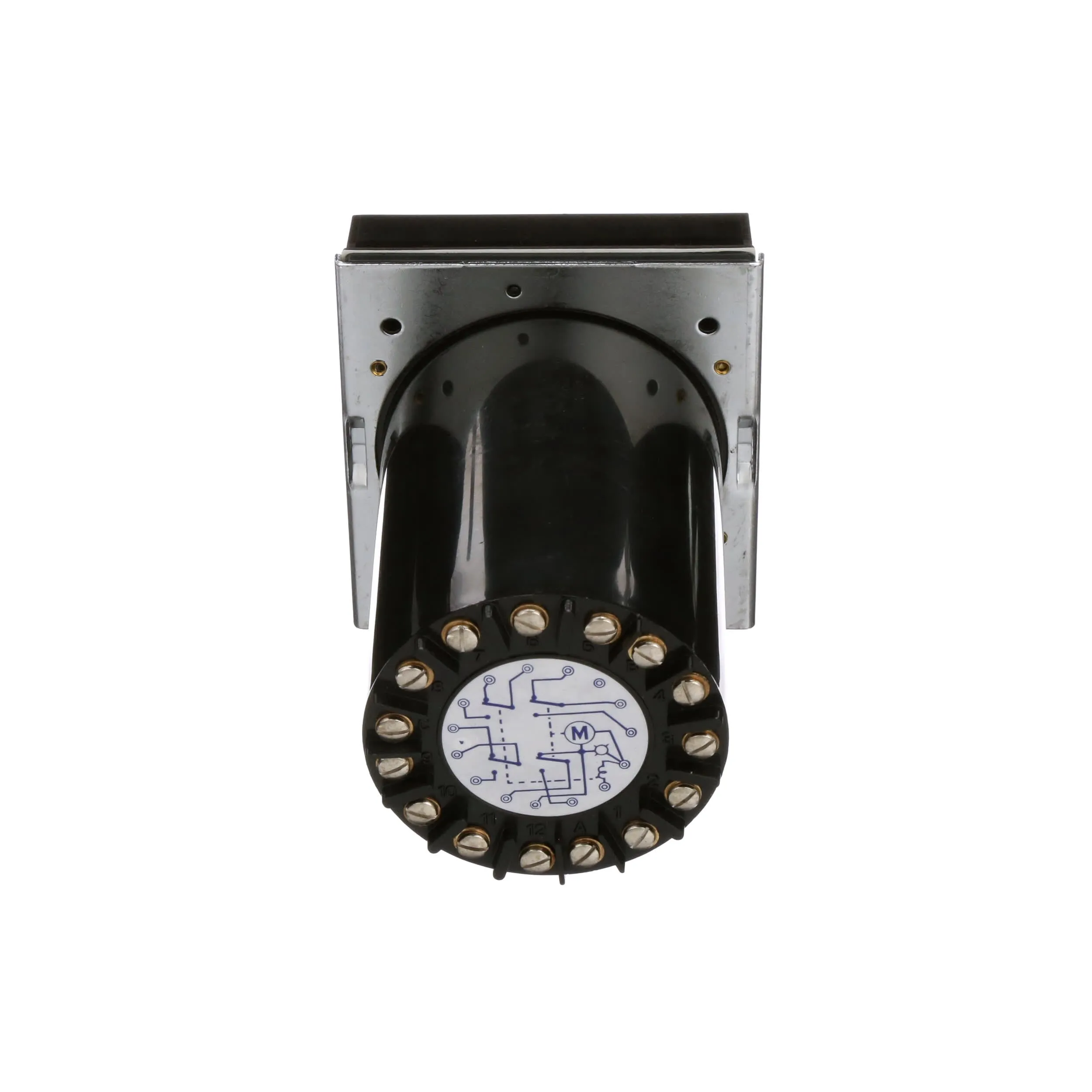

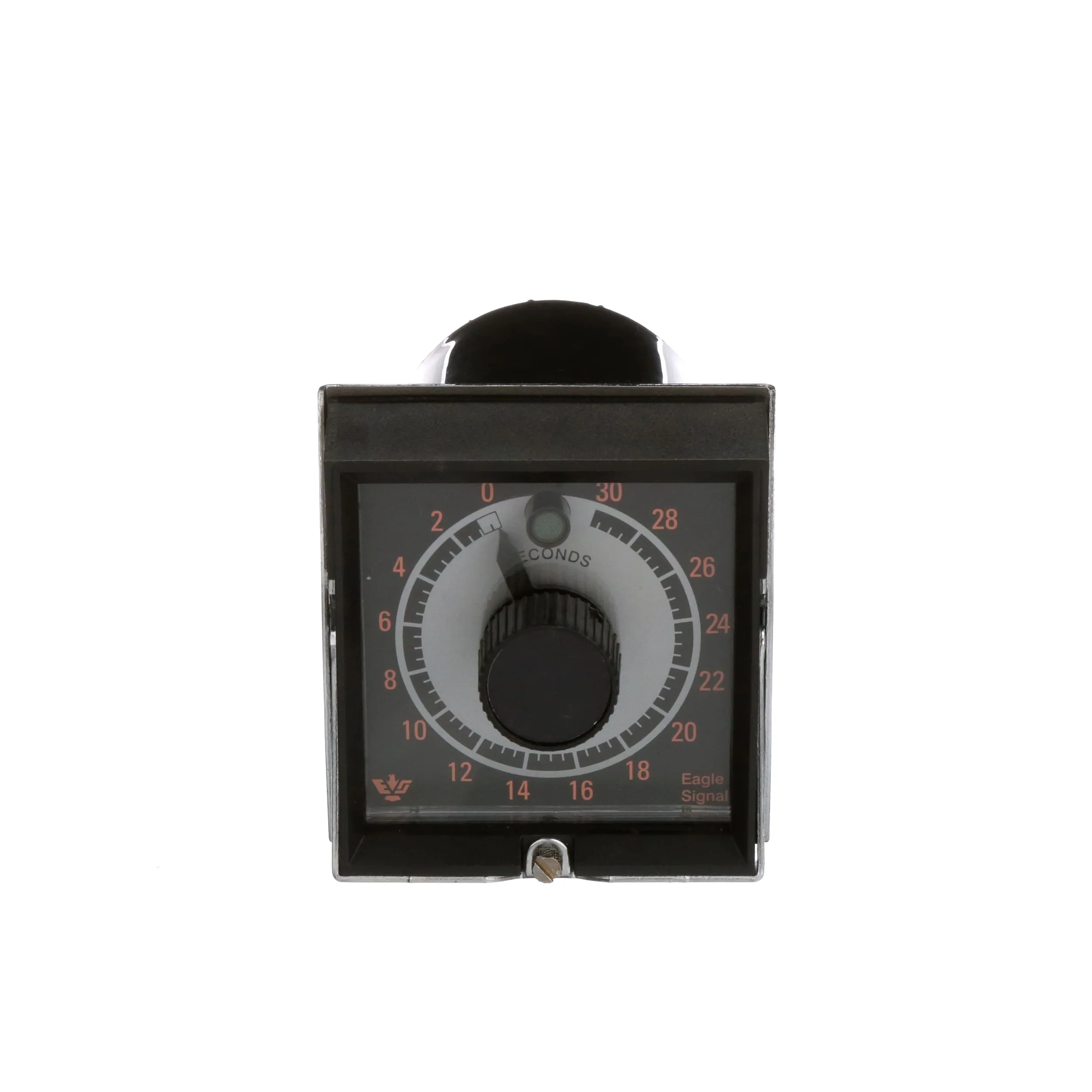

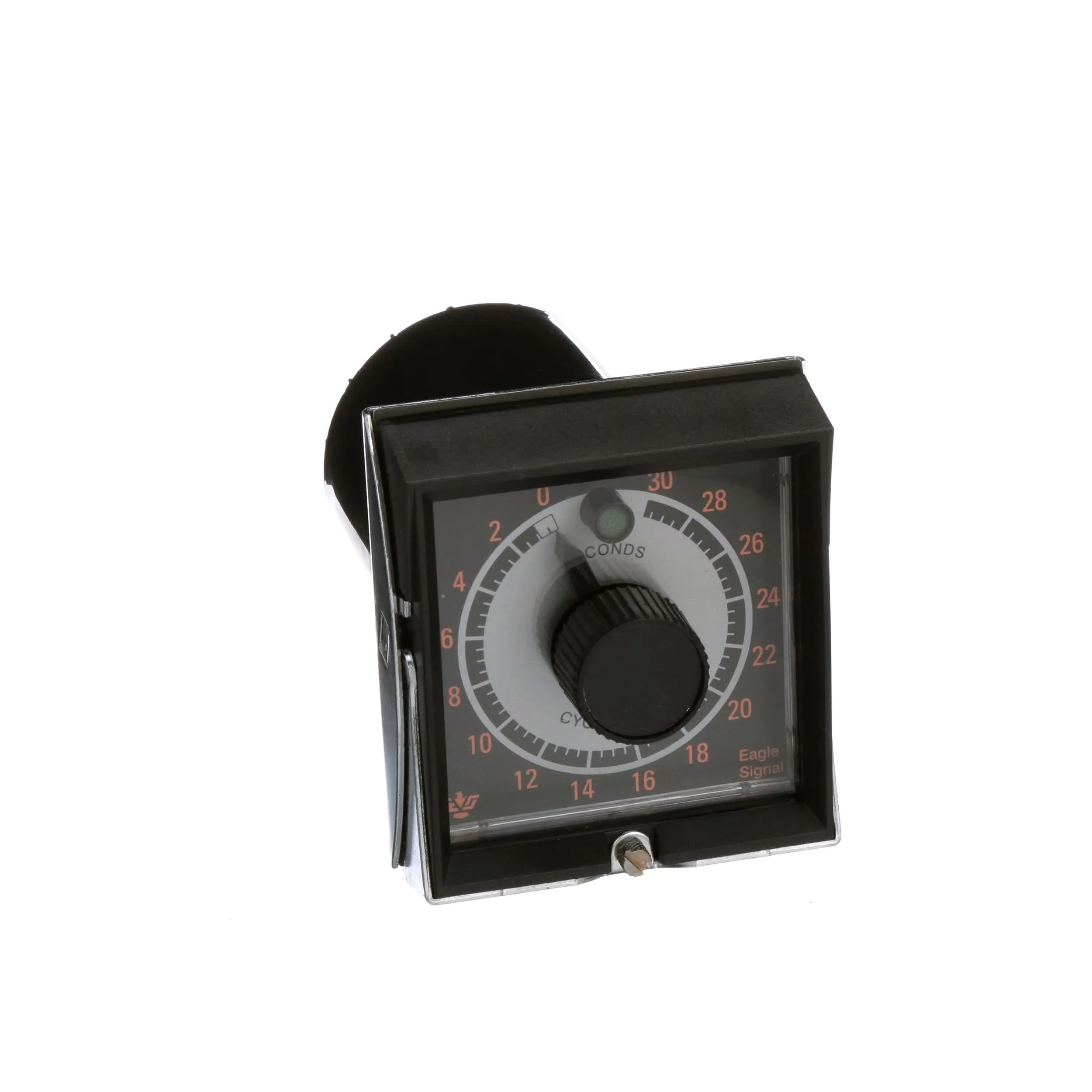

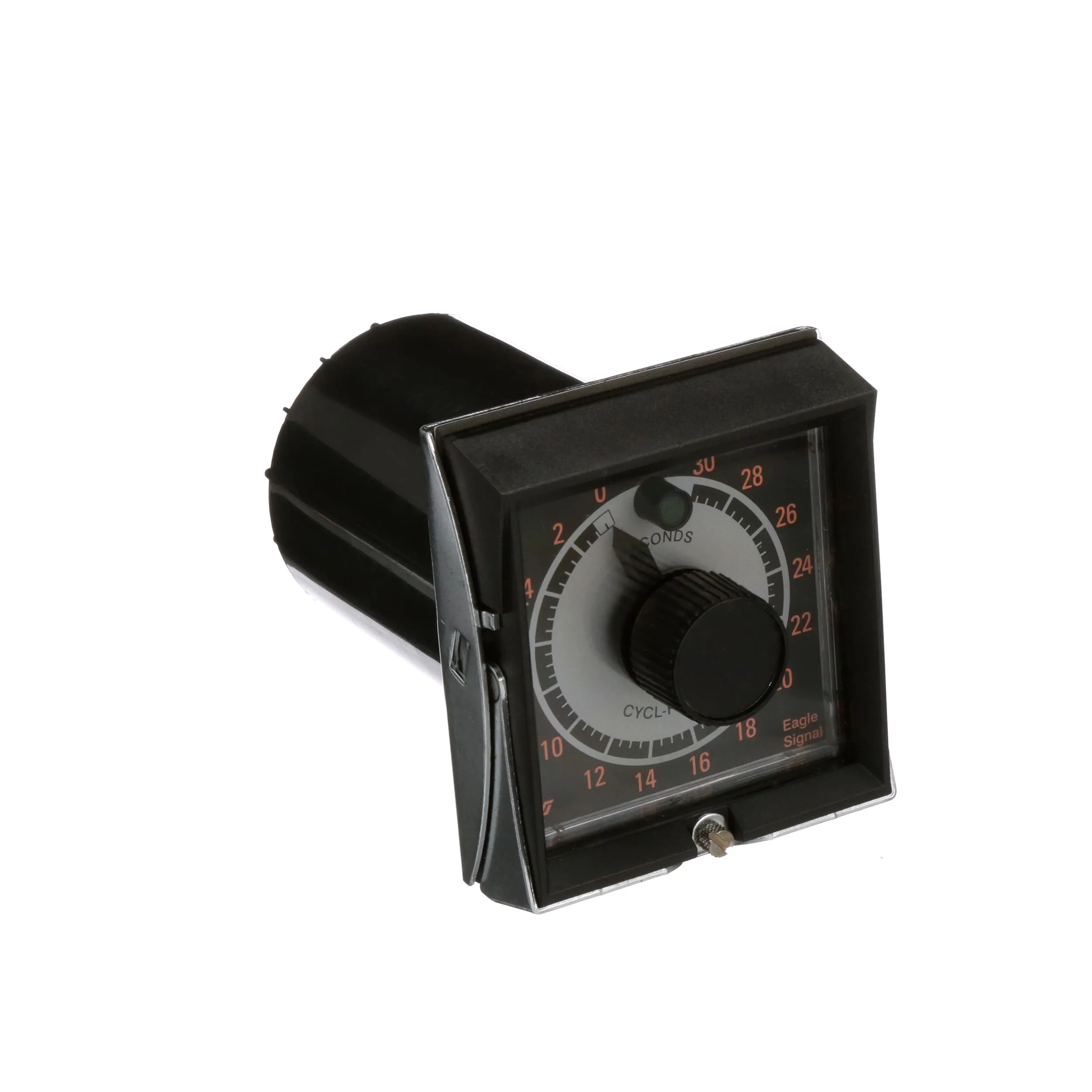

The HP5 CYCL-FLEX® series timer is a high quality, synchronous motor driven reset timer housed in the standard CYCL-FLEX® plug-in housing.
Features:
